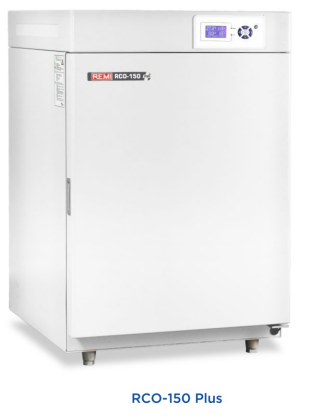

RCO-150 Plus

    On Request

    Ident. No.: 10605

    Govt. & Pvt. Research Institutes

    CO2 incubators find applications in tissue engineered products, in-vitro fertilization, diagnostics,cancer research and other medical, pharmaceutical related industries. Co2 incubators are used to culture cells to provide it with the optimum temperature, moisture (sterile environment) and to maintain optimum pH under a CO2 atmosphere.



    SALIENT FEATURES

    • Imported infrared CO2 Sensor.
    • CO2 concentration Restoration Speed.
    • Polished stainless-steel chamber, rounded
      corners for easy cleaning. Adjustable shelves.
    • Microorganism Filter at Inlet provides 99%filtration of bacteria and dust (O<0.3um) and supplies pure CO2 into the incubator.
    • Door temperature controller prevents condensate water on glass door of incubator
      effectively.
    • Independent audio-visual temperature limiting alarm system.
    • Alarm function for temperature difference, CO2 over concentration and concentration difference,door open time, UV working status.
    • Automatic control of fan speed to maintain uniform temperature and prevent damage to samples.
    • Hot air sterilizing circulation system.
    • PID controller with large LCD screen ensures precise and reliable control





    Technical Data
                                           Model

    RCO-150 Plus

    Chamber Volume (Liters) 150
    Sensor Infrared CO2
    Heating Method Air-Jacketed, PID Control
    CO2 Range 0~20% V/V
    CO2 Control resolution ± 0.1% (IR sensor)
    Temperature Range RT+5~55°C
    Temperature Stability ± 0.1°C
    Humidity Method Natural vaporization > 95%
    CO2 Recovery (Door open 30s, recovery to 5%) ≤ 3 min
    Temperature Recovery (Door open 30s, recovery to 37°C) ≤ 8 min
    Shelves 3
    Interior Dimension (mm) (W x D x H) 480 x 530 x 610
    Exterior Dimension (mm) (W x D x H) 670 x 767 x 880
